Construction of the plate circut by Dr David Kirkby

3CX3000A7 for 2m

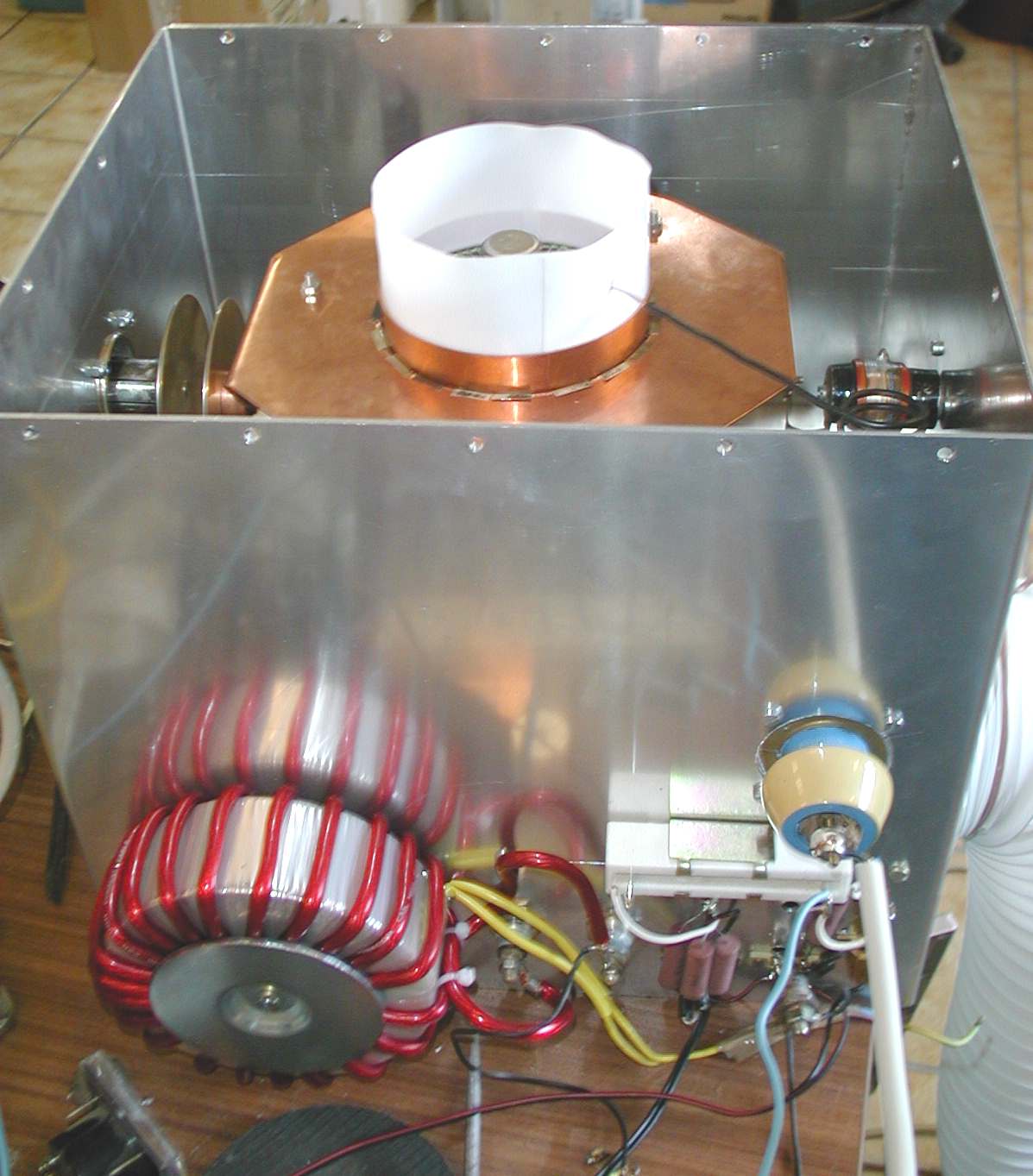

Heater Transformer and Plate through Cap.

inside on the left side Load C 6cm diameter

right side VAC Cap with 1 to 5 pF 15kV

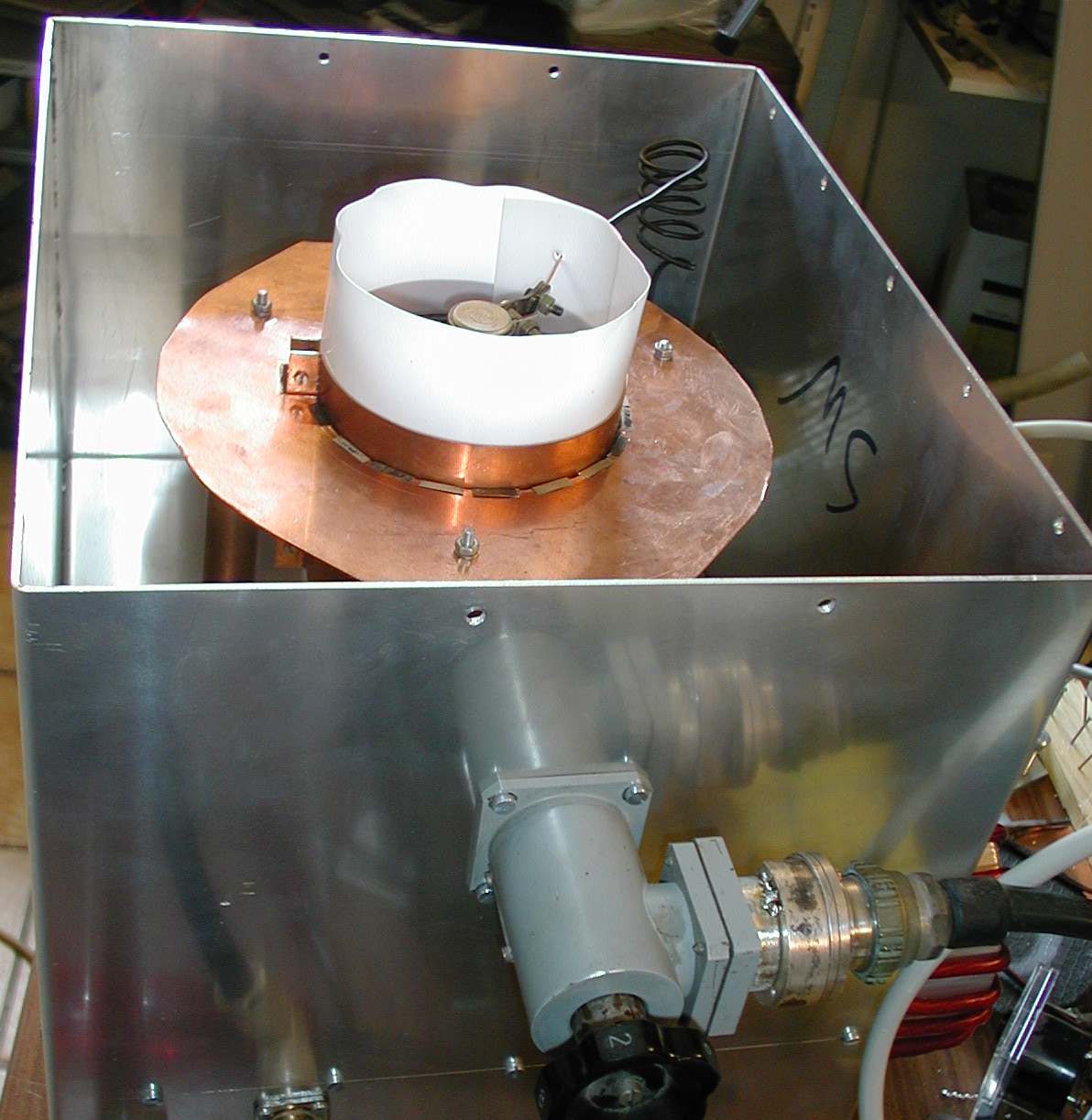

in front the variable load Cap, by a comercial TV-TX

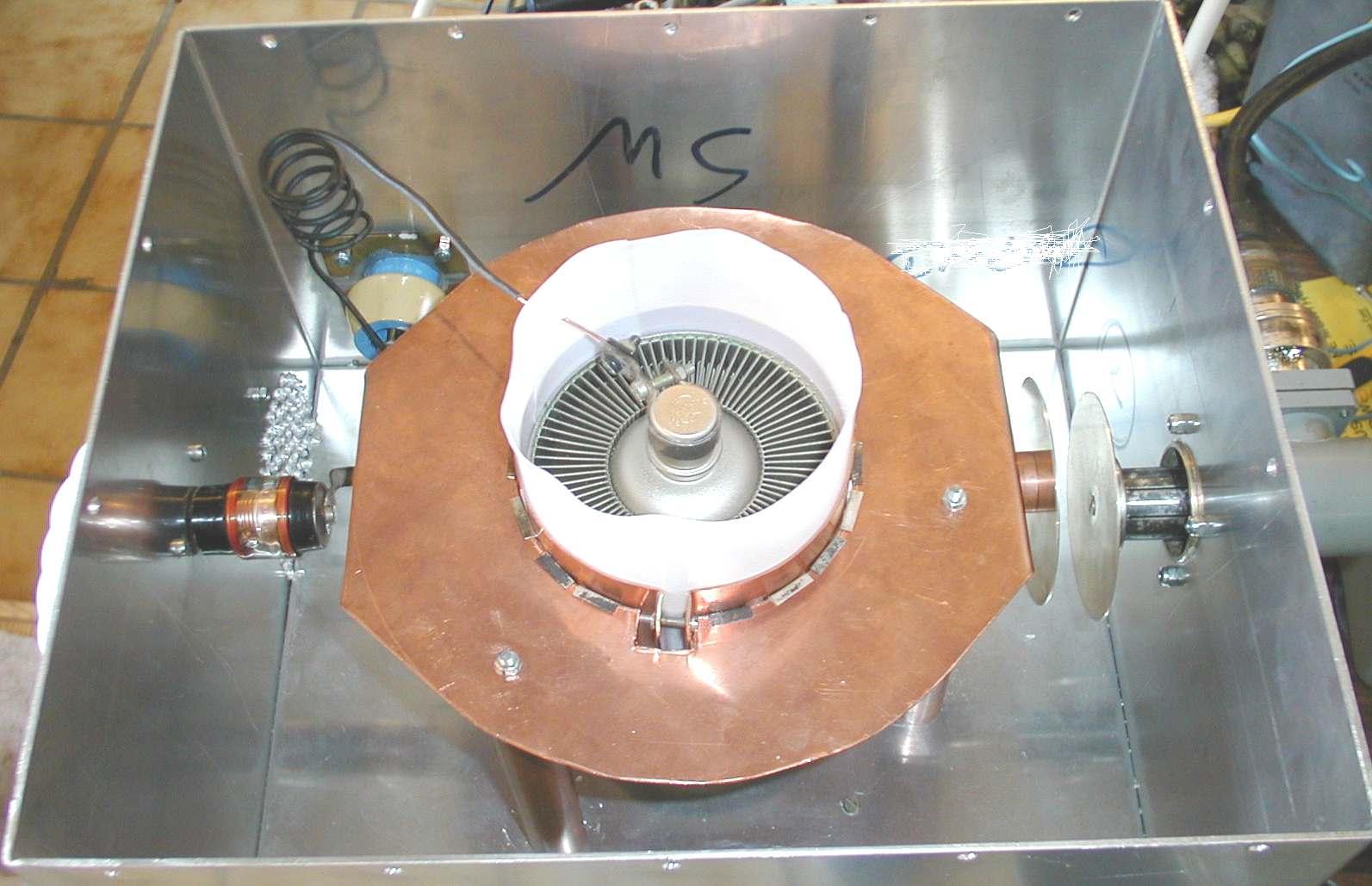

Plate Cap  is done around the tube, insolated with Teflon foile.

dimentions of the plate L/C

Tree copper tubes 18mm diameter and 150mm lengh are the plate L.

The circut is assembled as grounded Grid.

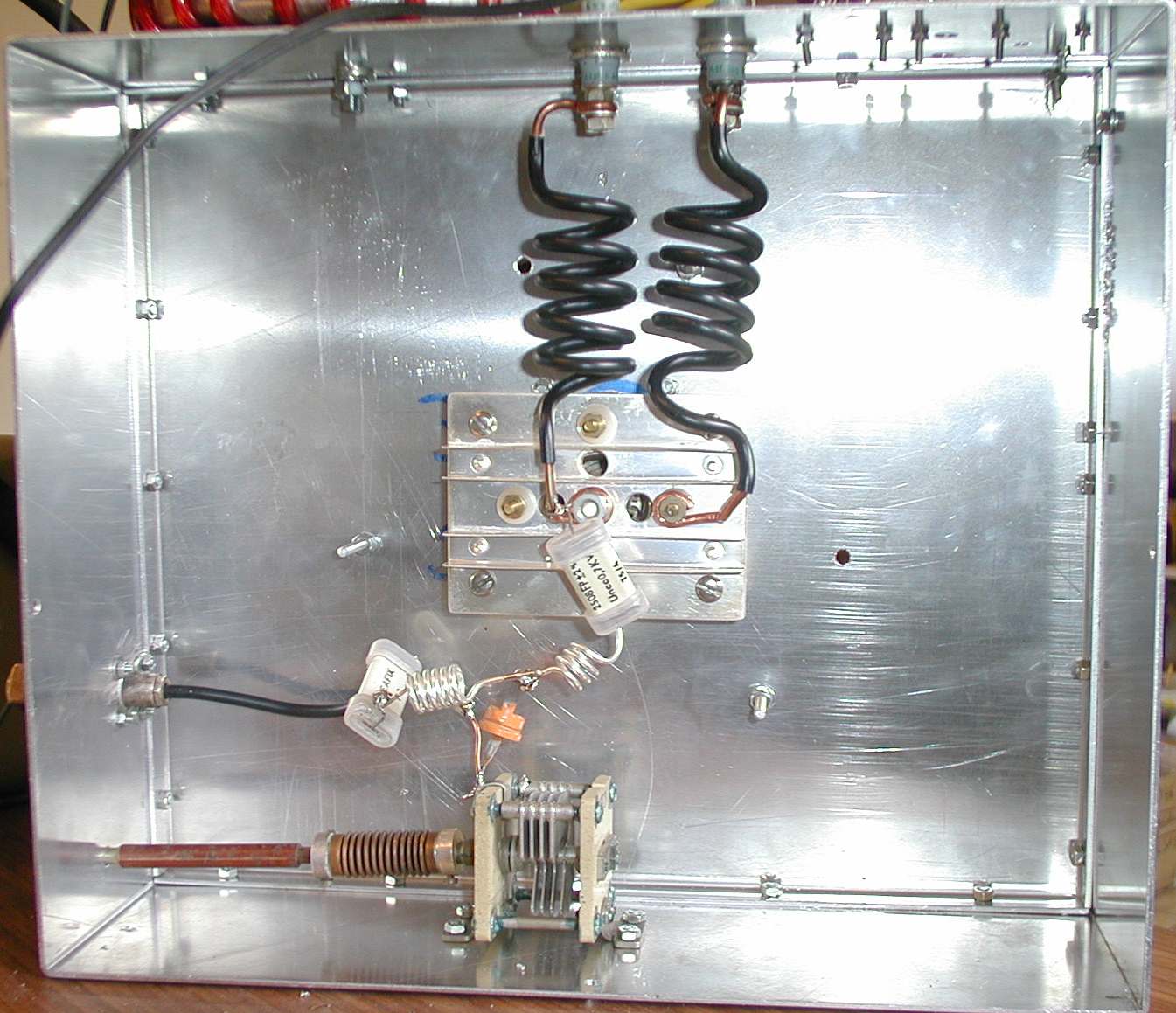

two RF chokes and through Caps for the heater (51A)
